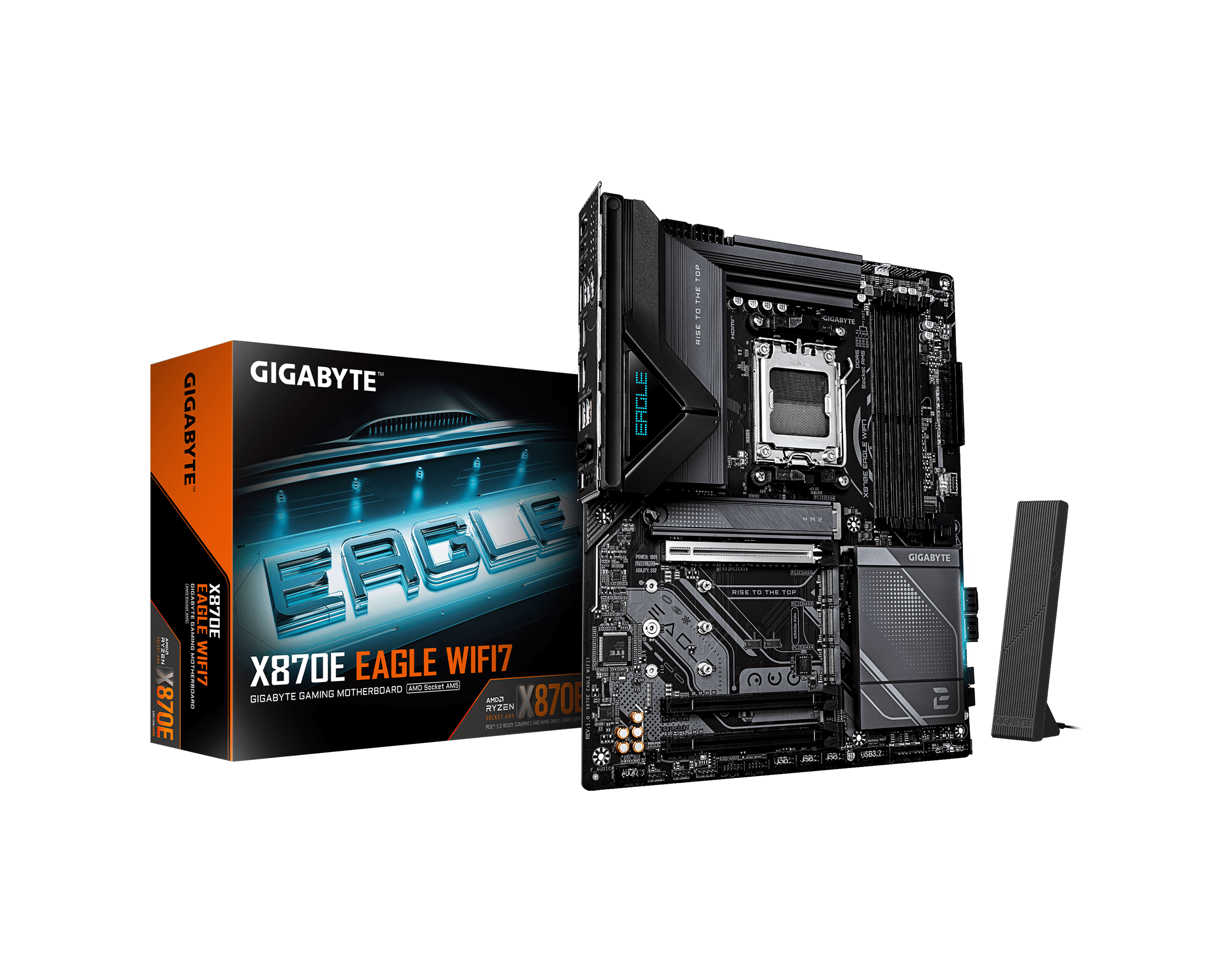

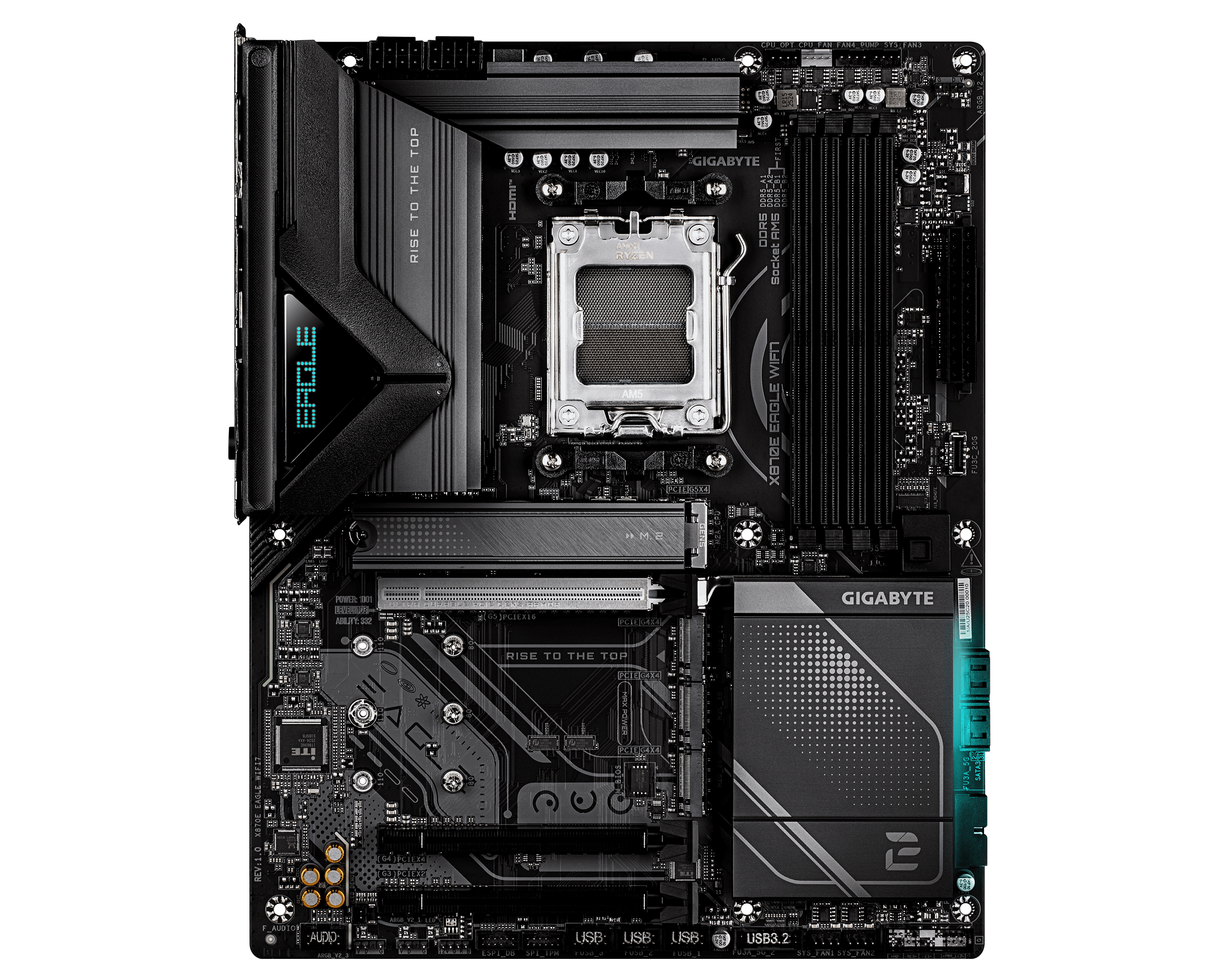

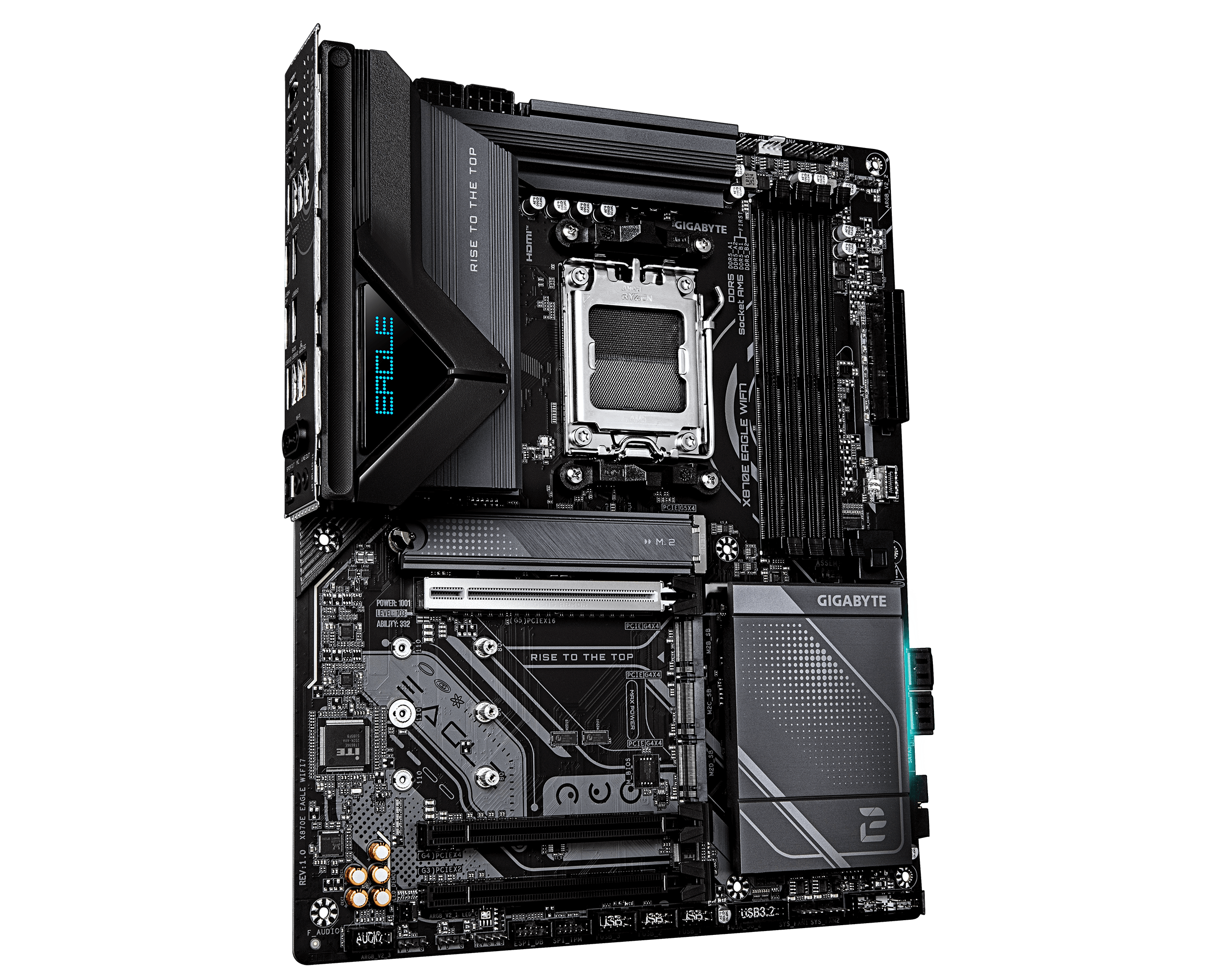

Motherboard GIGABYTE X870E EAGLE WIFI7, Socket AM5
GA-MB-X870E-EAGLE-WF7
Hover on image to enlarge
Delivery
Payment options
Our advantages
24 months warranty for individualsGuarantee for all products in our store is 24 months for individuals
12 months warranty for legal entitiesGuarantee for all products in our store is 12 months for legal entities
SMS notificationYou receive SMS messages about your delivery.
Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer and other.
Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!
Description
| Manufacturer | GIGABYTE |
|---|---|
| Model | X870E EAGLE WIFI7 |
| Reference number | GA-MB-X870E-EAGLE-WF7 |
| Barcode | 4719331880200 |
| Warranty | 36 |
| CPU Socket | AM5 |
| Chipset | AMD X870E |
| CPU supports | AMD 7000 Series Processors |
| CPU supports | AMD 8000 Series Processors |
| CPU supports | AMD 9000 Series Processors |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 256 GB |
| Number of Memory Slots | 4 |
| Frequency Memory | 8200(OC) MHz |
| Support Dualchannel | Yes |
| Integrated Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Integrated LAN | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s |
| Integrated Wi-Fi | 2x2 Wi-Fi 7 (802.11be) |
| Integrated Wi-Fi | Bluetooth v5.4 |
| PCI-E x16 | 1 x PCIe 5.0 x16 slot |
| PCI Express x4 | 1 |
| PCI-E x1 | 1 |
| Interface Serial ATA | 2 x SATA3 6.0 Gb/s |
| M2 socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs; 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| Raid support | 0,1,10 |
| Power Connector | 1 x 24 pin ATX Power Connector |
| Power Connector | 2 x 8-pin +12V Power connector |

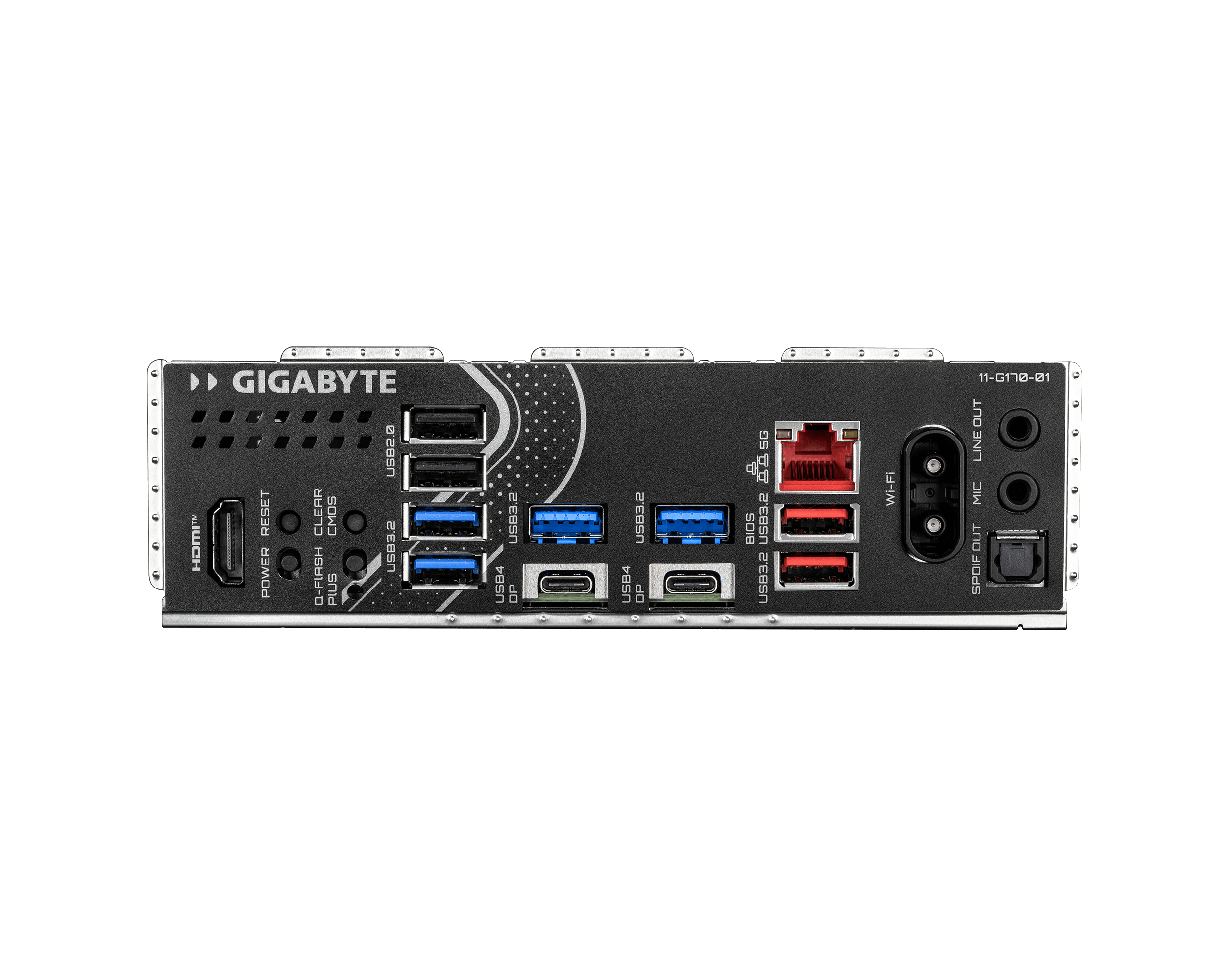

| Connectors | 1 x HDMI port |
| Connectors | 1 x RJ-45 |
| Connectors | 1 x optical S/PDIF Out connector |
| Connectors | 2 x Аudio jacks |
| Connectors | 1 x BIOS Flashback Button |
| Connectors | 2 x SMA antenna connectors |
| Connectors | 1 x Clear CMOS button |
| USB Ports | 4 x USB 3.2 Gen 1 |
| USB Ports | 2 x USB 3.2 Gen2 |
| USB Ports | 2 x USB 2.0 |
| USB Ports | 2 x USB 10Gbps ports Type-C |
| Dimension | ATX - 30.5 x 24.4 cm |
| Other | 256 Mb Flash ROM, UEFI AMI BIOS |
